Highly Available LAMP Stack on the Fujitsu K5 IaaS Platform

Yes, I’m afraid it’s yet another HEAT LAMP stack. This stack however includes some of the enhancements that Fujitsu have developed for Neutron and Heat. It deploys an apache server and a mysql server in both availability zones. It also links both of these AZs together to facilitate the replication and synchronisation traffic between these servers by using a network connector. A load balancer is also deployed on each subnet and contains both of the apache servers in its pool.

Note: Unfortunately I have not had the time to configure and debug apache or mysql scripts, only the software is installed but there are many articles on these topics in the blogosphere – just Yahoo for some examples… lol! Also the load balancers should finally be ‘balanced’ themselves using an external HA DNS service to ensure no single point of failure.

The diagram below outlines the infrastructure that will be built using the stack discussed in this blog.

overview

Prerequisites

The following prerequisites are required for a successful deployment of this stack.

Virtual Routers: An internet connected virtual router should be created in each availability zone and the parameters associated with these routers added to the stack.

prerequisites

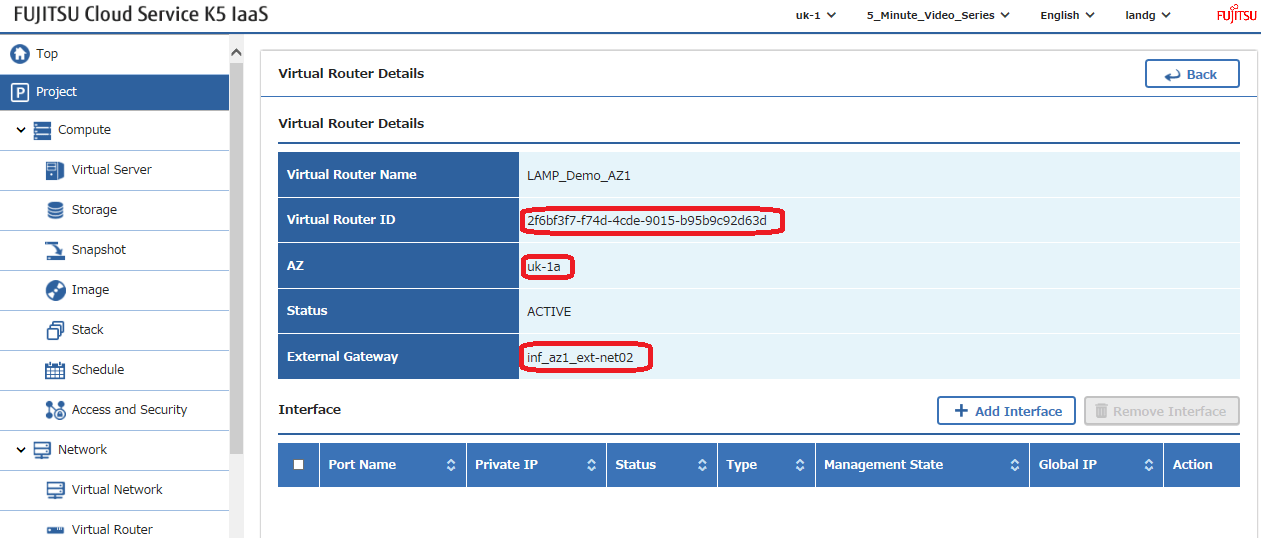

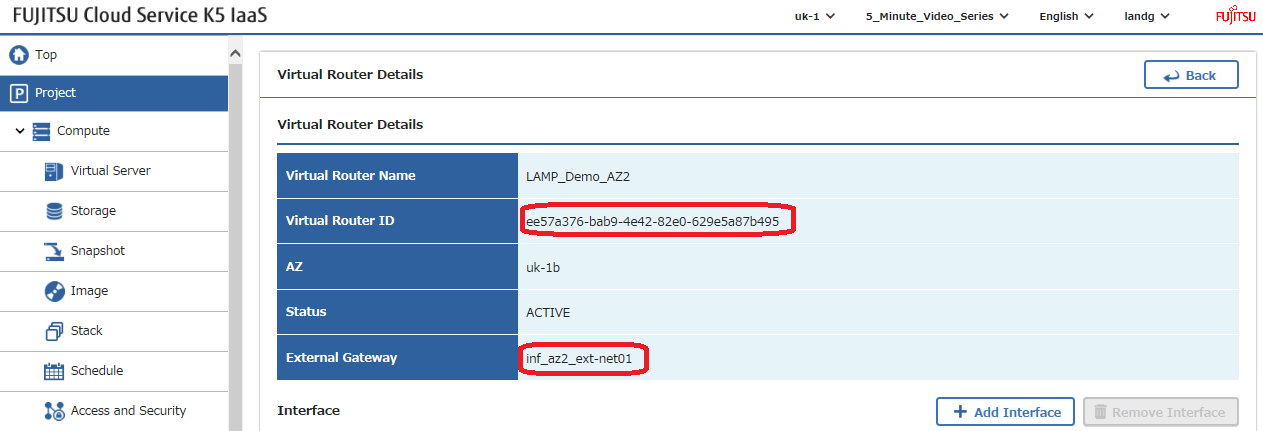

Get each router id, which needs to be amended in the example stack, and note the name of their external network that is used by each router –prerequisites-az1_ridprerequisites-az2_rid

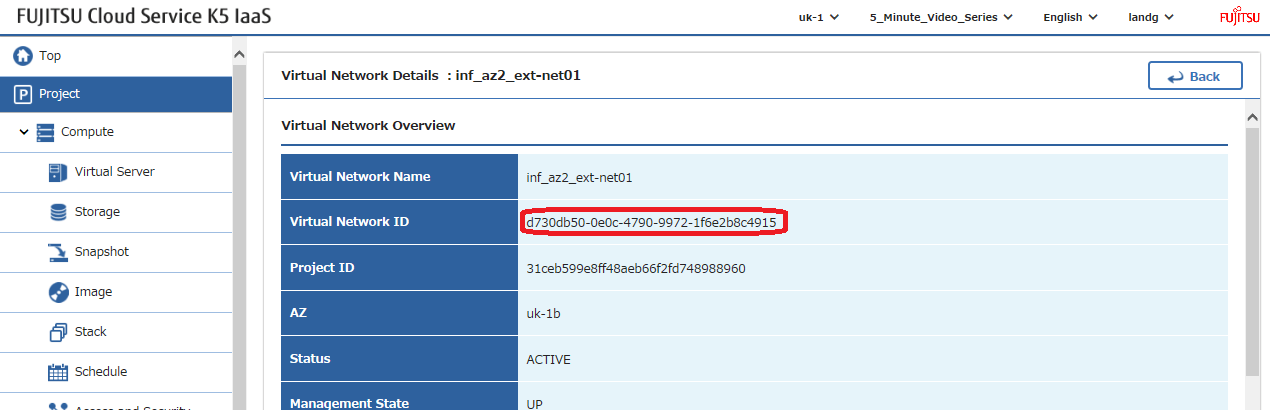

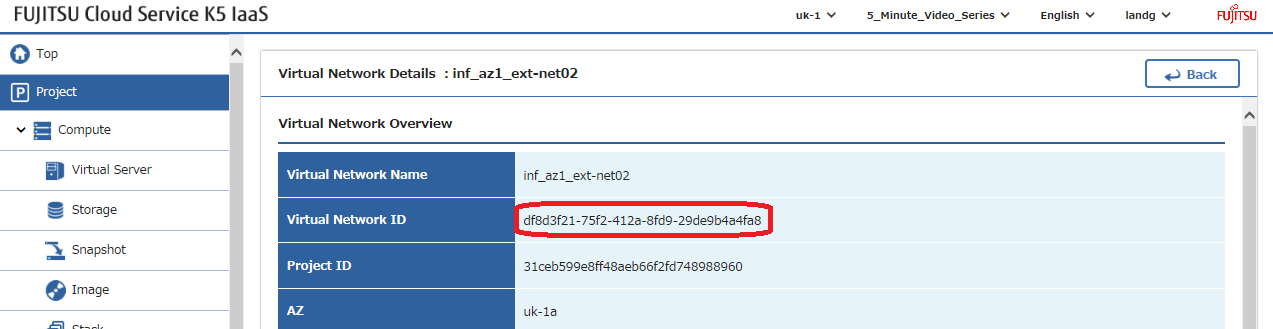

External Networks: Using the external network names identified above in the gateway settings locate the network ids of these external, also referred to as public, networks and amend these values in the example stack –prerequisites-az1_extprerequisites-az2_ext

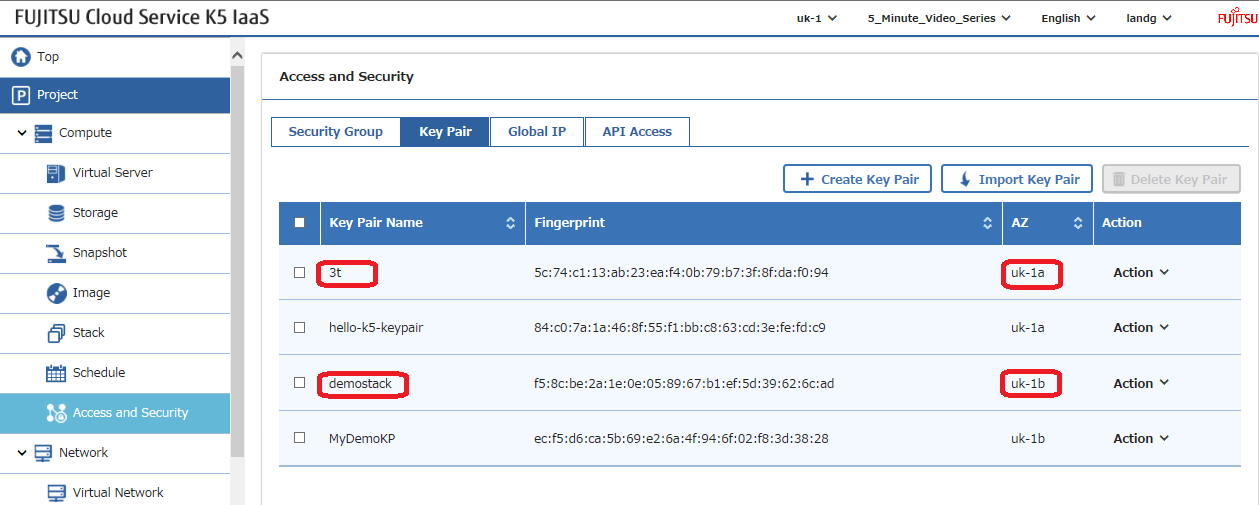

SSH Keys: Create an ssh key pair in each availability zone and amend their names in the example stack –prerequisites-keypairs

Image: Select the image that you wish to use and amend this parameter in the example stack. Note: The ‘UserData’ deployment scripts within the stack have been tested on CentOS7.2. If you decide to deploy a different version OS it will be necessary to modify these scripts with the commands required by the chosen OS.prerequisites-image

Deployment

Once all of these parameters have been configured it’s time to launch your stack, but first let me very briefly discuss the main sections –

Here are all the input parameters that need to be modified to suit your environment –


# Input parameters
parameters:
centos_image:
type: string
label: Image name or ID
description: Image to be used for compute instance
default: "CentOS 7.2 64bit (English) 01"
flavor_S2:
type: string
label: Flavor
description: Type of instance (flavor) to be used
default: "S-2"
key_az_1:
type: string
label: Key name
description: Name of key-pair to be used for compute instance
default: "3t"
key_az_2:
type: string
label: Key name
description: Name of key-pair to be used for compute instance
default: "demostack"
public_net_az1:
type: string
label: external network ID
description: Public network
default: "df8d3f21-75f2-412a-8fd9-29de9b4a4fa8"
public_net_az2:
type: string
label: external network ID
description: Public network
default: "d730db50-0e0c-4790-9972-1f6e2b8c4915"
az1:
type: string
label: Availability Zone
description: Region AZ to use
default: "uk-1a"
az2:
type: string
label: Availability Zone
description: Region AZ to use
default: "uk-1b"
ext_router_az1:
type: string
label: External Router
description: Router with external access for global ip allocation
default: "2f6bf3f7-f74d-4cde-9015-b95b9c92d63d"
ext_router_az2:
type: string
label: External Router
description: Router with external access for global ip allocation
default: "ee57a376-bab9-4e42-82e0-629e5a87b495"

view raw

ExampleLampStack-Parameters.yml

hosted with ❤ by GitHub

Next we create the two private networks, one in each availability zone and connect them to their respective existing routers –


# Create a private network in availability zone 1
private_net_az1:
type: OS::Neutron::Net
properties:
availability_zone: { get_param: az1 }
name: "private_net_az1"
# Create a new subnet on the private network
private_subnet_az1:
type: OS::Neutron::Subnet
depends_on: private_net_az1
properties:
availability_zone: { get_param: az1 }
name: "private_subnet_az1"
network_id: { get_resource: private_net_az1 }
cidr: "192.168.100.0/24"
gateway_ip: "192.168.100.254"
allocation_pools:
– start: "192.168.100.100"
end: "192.168.100.150"
dns_nameservers: ["62.60.39.9", "62.60.39.10"]
host_routes: [{"nexthop": "192.168.100.253", "destination": "10.11.200.0/24"}]
# Connect an interface on the web tier network's subnet to the router
az1_router_interface:
type: OS::Neutron::RouterInterface
depends_on: [private_subnet_az1]
properties:
router_id: { get_param: ext_router_az1 }
subnet_id: { get_resource: private_subnet_az1 }
# Create a private network in availability zone 2
private_net_az2:
type: OS::Neutron::Net
properties:
availability_zone: { get_param: az2 }
name: "private_net_az2"
# Create a new subnet on the private network
private_subnet_az2:
type: OS::Neutron::Subnet
depends_on: private_net_az2
properties:
availability_zone: { get_param: az2 }
name: "private_subnet_az2"
network_id: { get_resource: private_net_az2 }
cidr: "10.11.200.0/24"
gateway_ip: "10.11.200.254"
allocation_pools:
– start: "10.11.200.100"
end: "10.11.200.150"
dns_nameservers: ["62.60.42.9", "62.60.42.10"]
host_routes: [{"nexthop": "10.11.200.253", "destination": "192.168.100.0/24"}]
# Connect an interface on the web tier network's subnet to the router
az2_router_interface:
type: OS::Neutron::RouterInterface
depends_on: [private_subnet_az2]
properties:
router_id: { get_param: ext_router_az2 }
subnet_id: { get_resource: private_subnet_az2 }

view raw

K5LAMPNetworkSection.yml

hosted with ❤ by GitHub

Now we define all the security groups and rules that we wish to use in the stack. Note : The security groups have been left “wide open” for easy of testing. Please ensure to lock these down in a production scenario to improve security –


# Create a security group
server_security_group1:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: Apache
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group2:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: MySQL
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group3:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: LBaaS_AZ1
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group4:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: LBaaS_AZ2
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group5:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: JumpBox
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp

view raw

K5SecurityGroupSection.yml

hosted with ❤ by GitHub

Next we define our two load balancers and note the use of the ‘depends_on’ statement here to ensure that these are not built until after the two apache servers are built as their details are a prerequisite of the load balancer creation –


# AZ 1 Load Balancer
LAMP_Demo_AZ1_LBaaS:
type: FCX::ExpandableLoadBalancer::LoadBalancer
depends_on: [ server1,server2 ]
properties:
Subnets: [{get_resource: private_subnet_az1}]
Instances: [{get_resource: server1},{get_resource: server2}]
Listeners:
– {LoadBalancerPort: '80',
InstancePort: '80',
Protocol: 'HTTP',
InstanceProtocol: 'HTTP' }
HealthCheck: {Target: 'HTTP:80/healthcheck',
HealthyThreshold: '3',
UnhealthyThreshold: '5',
Interval: '30',
Timeout: '5'}
Version: 2014-09-30
Scheme: public
LoadBalancerName: LBaaSAZ1
SecurityGroups: [ {get_resource: server_security_group3} ]
# AZ 2 Load Balancer
LAMP_Demo_AZ2_LBaaS:
type: FCX::ExpandableLoadBalancer::LoadBalancer
depends_on: [ server1,server2 ]
properties:
Subnets: [{get_resource: private_subnet_az2}]
Instances: [{get_resource: server1},{get_resource: server2}]
Listeners:
– {LoadBalancerPort: '80',
InstancePort: '80',
Protocol: 'HTTP',
InstanceProtocol: 'HTTP' }
HealthCheck: {Target: 'HTTP:80/healthcheck',
HealthyThreshold: '3',
UnhealthyThreshold: '5',
Interval: '30',
Timeout: '5'}
Version: 2014-09-30
Scheme: public
LoadBalancerName: LBaaSAZ2
SecurityGroups: [ {get_resource: server_security_group4} ]

view raw

TwoLoadBalancersExample.yml

hosted with ❤ by GitHub

Now we define all of our servers which consists of a jump box that we’ll give a global (floating) ip address to, 2 servers with web software loaded and finally two servers with mysql loaded. Note that I’ve deliberately defined static ip addresses everywhere as this procedure was not published in many places online. This is over kill and you could just leverage DHCP if desired. Production environments tend to like consistency and repeat-ability for some strange reason 😉  Anyone ever heard of CI/CD flows.


################### JumpBox – AZ 1 ##############################################################################
# Create a new port for the server interface, assign an ip address and security group
jump-server-port:
type: OS::Neutron::Port
depends_on: [ server_security_group5 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group5 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.5'
# Allocate a floating/global ip address
jump-server-floating-ip:
type: OS::Neutron::FloatingIP
properties:
availability_zone: { get_param: az1 }
floating_network_id: { get_param: public_net_az1 }
# Assign a floating/global ip address to the fixed server ip address
jump-server-floating-ip-association:
type: OS::Neutron::FloatingIPAssociation
depends_on: jump-server-floating-ip
properties:
floatingip_id: { get_resource: jump-server-floating-ip }
port_id: { get_resource: jump-server-port }
# Create a system volume for use with the server
jump-sys-vol:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az1 }
name: "LAMP-JumpBox-AZ1"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
jump-server:
type: OS::Nova::Server
depends_on: [ jump-server-port ]
properties:
key_name: { get_param: key_az_1 }
image: { get_param: centos_image }
flavor: "S-1"
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: jump-sys-vol}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "LAMP-JumpBox-AZ1"
networks:
– port: { get_resource: jump-server-port }
##########################################################################################################
################### WebServers – AZ 1 ##############################################################################
# Create a new port for the server interface, assign an ip address and security group
server1_port:
type: OS::Neutron::Port
depends_on: [ server_security_group1 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group1 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.10'
# Create a system volume for use with the server
sys-vol1:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az1 }
name: "web-az1-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server1:
type: OS::Nova::Server
depends_on: [ jump-server,server1_port,sys-vol1 ]
properties:
key_name: { get_param: key_az_1 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol1}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Apache-AZ1"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo yum install httpd -y
sudo systemctl start httpd.service
sudo systemctl enable httpd.service
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql -y
sudo yum install php php-pear -y
sudo yum install php-mysql -y
sudo yum install lua lua-devel pkgconfig gcc asciidoc -y
sudo wget http://dl.fedoraproject.org/pub/epel/7/x86_64/e/epel-release-7-8.noarch.rpm
sudo rpm -iUvh epel-release-7-8.noarch.rpm
sudo yum update -y
sudo yum install lsyncd -y
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server1_port }
###########################################################################################################
################### WebServers – AZ 2 ##############################################################################
server2_port:
type: OS::Neutron::Port
depends_on: [ server_security_group1 ]
properties:
availability_zone: { get_param: az2 }
network_id: { get_resource: private_net_az2 }
security_groups: [{ get_resource: server_security_group1 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az2 }
ip_address: '10.11.200.10'
# Create a system volume for use with the server
sys-vol2:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az2 }
name: "web-az2-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server2:
type: OS::Nova::Server
depends_on: [ jump-server,server2_port,sys-vol2 ]
properties:
key_name: { get_param: key_az_2 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol2}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Apache-AZ2"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo yum install httpd -y
sudo systemctl start httpd.service
sudo systemctl enable httpd.service
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql -y
sudo yum install php php-pear -y
sudo yum install php-mysql -y
sudo yum install lua lua-devel pkgconfig gcc asciidoc -y
sudo wget http://dl.fedoraproject.org/pub/epel/7/x86_64/e/epel-release-7-8.noarch.rpm
sudo rpm -iUvh epel-release-7-8.noarch.rpm
sudo yum update -y
sudo yum install lsyncd -y
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server2_port }
###########################################################################################################
################### DatabaseServers – AZ 1 ##############################################################################
# Create a new port for the server interface, assign an ip address and security group
server3_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.30'
# Create a system volume for use with the server
sys-vol3:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az1 }
name: "db-az1-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server3:
type: OS::Nova::Server
depends_on: [ jump-server,server3_port,sys-vol3 ]
properties:
key_name: { get_param: key_az_1 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol3}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Database-AZ1"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql-server -y
sudo systemctl start mysqld
sudo systemctl enable mysqld
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server3_port }
###########################################################################################################
################### DatabaseServers – AZ 2 ################################################################
# Create a new port for the server interface, assign an ip address and security group
server4_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az2 }
network_id: { get_resource: private_net_az2 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az2 }
ip_address: '10.11.200.30'
# Create a system volume for use with the server
sys-vol4:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az2 }
name: "db-az2-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server4:
type: OS::Nova::Server
depends_on: [ jump-server,server4_port,sys-vol4 ]
properties:
key_name: { get_param: key_az_2 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol4}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Database-AZ2"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql-server -y
sudo systemctl start mysqld
sudo systemctl enable mysqld
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server4_port }
###########################################################################################################

view raw

K5LAMPExampleServersSection.yml

hosted with ❤ by GitHub

Finally we have the network connector section. This forms the layer 3 link between the two subnets in the different availability zones. This is the link that will carry all the replication and synchronization traffic between the servers. Logically it would probably have been better to move this to the networking section of this post but I dare not change it now for fear of introducing a typo and I’ve no time to retest – what’s currently on github works 🙂


############################### AZ Interconnect ###########################################################
az1_nc_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.253'
az2_nc_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az2 }
network_id: { get_resource: private_net_az2 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az2 }
ip_address: '10.11.200.253'
az1_network_connector:
type: FCX::Neutron::NetworkConnector
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
name: "LAMP-Demo-NC"
az1_nc_endpoint:
type: FCX::Neutron::NetworkConnectorEndpoint
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
endpoint_type: "availability_zone"
name: "AZ1-NC-EP"
network_connector_id: { get_resource: az1_network_connector }
location: { get_param: az1 }
az2_nc_endpoint:
type: FCX::Neutron::NetworkConnectorEndpoint
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
endpoint_type: "availability_zone"
name: "AZ2-NC-EP"
network_connector_id: { get_resource: az1_network_connector }
location: { get_param: az2 }
az1_endpoint_connection:
type: FCX::Neutron::NetworkConnectorEndpointConnection
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
port_id: { get_resource: az1_nc_port }
network_connector_endpoint_id: { get_resource: az1_nc_endpoint }
az2_endpoint_connection:
type: FCX::Neutron::NetworkConnectorEndpointConnection
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
port_id: { get_resource: az2_nc_port }
network_connector_endpoint_id: { get_resource: az2_nc_endpoint }

view raw

K5NetworkConnectorExample.yml

hosted with ❤ by GitHub

If you haven’t already gone straight to github then here’s what you’ll want to download and play with in one easy gist –


heat_template_version: 2013-05-23
# Author: Graham Land
# Date: 21/10/2016
# Purpose: Multi-Availability-Zone template to demonstrate the basic format/usage of HOT stacks on our Fujitsu K5 platform
# It builds a webserver and database server in AZ1 and then the same infrastructure again in AZ2.
# These two environmnets are then joined using a network connector to facilitate data replication between the applications.
# Two public facing load balancers are also deployed – one in each AZ – and the webservers are added to each of these.
#
# The webservers have apache, php, mysql-client and lsyncd installed but NOT configured – didn't have time for this script sorry – loads of examples available online
# The database servers have mysql installed but not configured – again lots of examples available online – can be easily setup in Master/Master mode
# Once the web application is installed use Lsyncd to provide Master/Slave sync between the apache servers.
#
# I'm not a LAMP expert there are many different ways of implementing the above software components the goal of this stack is to illustrate
# a highly available infrastructure solution – please adjust to taste e.g. GlusterFS instead of Lsync, Galera MySQL Cluster software etc…
# Twitter: @allthingsclowd
# Blog: https://allthingscloud.eu
description: Yes I'm afraid it's yet another LAMP HEAT stack – this time though it's a multi-AZ deployment on Fujitsu K5 IaaS
# Input parameters
parameters:
centos_image:
type: string
label: Image name or ID
description: Image to be used for compute instance
default: "CentOS 7.2 64bit (English) 01"
flavor_S2:
type: string
label: Flavor
description: Type of instance (flavor) to be used
default: "S-2"
key_az_1:
type: string
label: Key name
description: Name of key-pair to be used for compute instance
default: "3t"
key_az_2:
type: string
label: Key name
description: Name of key-pair to be used for compute instance
default: "demostack"
public_net_az1:
type: string
label: external network ID
description: Public network
default: "df8d3f21-75f2-412a-8fd9-29de9b4a4fa8"
public_net_az2:
type: string
label: external network ID
description: Public network
default: "d730db50-0e0c-4790-9972-1f6e2b8c4915"
az1:
type: string
label: Availability Zone
description: Region AZ to use
default: "uk-1a"
az2:
type: string
label: Availability Zone
description: Region AZ to use
default: "uk-1b"
ext_router_az1:
type: string
label: External Router
description: Router with external access for global ip allocation
default: "2f6bf3f7-f74d-4cde-9015-b95b9c92d63d"
ext_router_az2:
type: string
label: External Router
description: Router with external access for global ip allocation
default: "ee57a376-bab9-4e42-82e0-629e5a87b495"
# K5 Infrastructure resources to be built
resources:
# Create a private network in availability zone 1
private_net_az1:
type: OS::Neutron::Net
properties:
availability_zone: { get_param: az1 }
name: "private_net_az1"
# Create a new subnet on the private network
private_subnet_az1:
type: OS::Neutron::Subnet
depends_on: private_net_az1
properties:
availability_zone: { get_param: az1 }
name: "private_subnet_az1"
network_id: { get_resource: private_net_az1 }
cidr: "192.168.100.0/24"
gateway_ip: "192.168.100.254"
allocation_pools:
– start: "192.168.100.100"
end: "192.168.100.150"
dns_nameservers: ["62.60.39.9", "62.60.39.10"]
host_routes: [{"nexthop": "192.168.100.253", "destination": "10.11.200.0/24"}]
# Connect an interface on the web tier network's subnet to the router
az1_router_interface:
type: OS::Neutron::RouterInterface
depends_on: [private_subnet_az1]
properties:
router_id: { get_param: ext_router_az1 }
subnet_id: { get_resource: private_subnet_az1 }
# Create a private network in availability zone 2
private_net_az2:
type: OS::Neutron::Net
properties:
availability_zone: { get_param: az2 }
name: "private_net_az2"
# Create a new subnet on the private network
private_subnet_az2:
type: OS::Neutron::Subnet
depends_on: private_net_az2
properties:
availability_zone: { get_param: az2 }
name: "private_subnet_az2"
network_id: { get_resource: private_net_az2 }
cidr: "10.11.200.0/24"
gateway_ip: "10.11.200.254"
allocation_pools:
– start: "10.11.200.100"
end: "10.11.200.150"
dns_nameservers: ["62.60.42.9", "62.60.42.10"]
host_routes: [{"nexthop": "10.11.200.253", "destination": "192.168.100.0/24"}]
# Connect an interface on the web tier network's subnet to the router
az2_router_interface:
type: OS::Neutron::RouterInterface
depends_on: [private_subnet_az2]
properties:
router_id: { get_param: ext_router_az2 }
subnet_id: { get_resource: private_subnet_az2 }
# Create a security group
server_security_group1:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: Apache
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group2:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: MySQL
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group3:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: LBaaS_AZ1
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group4:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: LBaaS_AZ2
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# Create a security group
server_security_group5:
type: OS::Neutron::SecurityGroup
properties:
description: Add security group rules for server
name: JumpBox
rules:
– remote_ip_prefix: 0.0.0.0/0
protocol: tcp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: udp
port_range_min: 1
port_range_max: 65535
– remote_ip_prefix: 0.0.0.0/0
protocol: icmp
# AZ 1 Load Balancer
LAMP_Demo_AZ1_LBaaS:
type: FCX::ExpandableLoadBalancer::LoadBalancer
depends_on: [ server1,server2 ]
properties:
Subnets: [{get_resource: private_subnet_az1}]
Instances: [{get_resource: server1},{get_resource: server2}]
Listeners:
– {LoadBalancerPort: '80',
InstancePort: '80',
Protocol: 'HTTP',
InstanceProtocol: 'HTTP' }
HealthCheck: {Target: 'HTTP:80/healthcheck',
HealthyThreshold: '3',
UnhealthyThreshold: '5',
Interval: '30',
Timeout: '5'}
Version: 2014-09-30
Scheme: public
LoadBalancerName: LBaaSAZ1
SecurityGroups: [ {get_resource: server_security_group3} ]
# AZ 2 Load Balancer
LAMP_Demo_AZ2_LBaaS:
type: FCX::ExpandableLoadBalancer::LoadBalancer
depends_on: [ server1,server2 ]
properties:
Subnets: [{get_resource: private_subnet_az2}]
Instances: [{get_resource: server1},{get_resource: server2}]
Listeners:
– {LoadBalancerPort: '80',
InstancePort: '80',
Protocol: 'HTTP',
InstanceProtocol: 'HTTP' }
HealthCheck: {Target: 'HTTP:80/healthcheck',
HealthyThreshold: '3',
UnhealthyThreshold: '5',
Interval: '30',
Timeout: '5'}
Version: 2014-09-30
Scheme: public
LoadBalancerName: LBaaSAZ2
SecurityGroups: [ {get_resource: server_security_group4} ]
################### JumpBox – AZ 1 ##############################################################################
# Create a new port for the server interface, assign an ip address and security group
jump-server-port:
type: OS::Neutron::Port
depends_on: [ server_security_group5 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group5 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.5'
# Allocate a floating/global ip address
jump-server-floating-ip:
type: OS::Neutron::FloatingIP
properties:
availability_zone: { get_param: az1 }
floating_network_id: { get_param: public_net_az1 }
# Assign a floating/global ip address to the fixed server ip address
jump-server-floating-ip-association:
type: OS::Neutron::FloatingIPAssociation
depends_on: jump-server-floating-ip
properties:
floatingip_id: { get_resource: jump-server-floating-ip }
port_id: { get_resource: jump-server-port }
# Create a system volume for use with the server
jump-sys-vol:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az1 }
name: "LAMP-JumpBox-AZ1"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
jump-server:
type: OS::Nova::Server
depends_on: [ jump-server-port ]
properties:
key_name: { get_param: key_az_1 }
image: { get_param: centos_image }
flavor: "S-1"
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: jump-sys-vol}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "LAMP-JumpBox-AZ1"
networks:
– port: { get_resource: jump-server-port }
##########################################################################################################
################### WebServers – AZ 1 ##############################################################################
# Create a new port for the server interface, assign an ip address and security group
server1_port:
type: OS::Neutron::Port
depends_on: [ server_security_group1 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group1 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.10'
# Create a system volume for use with the server
sys-vol1:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az1 }
name: "web-az1-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server1:
type: OS::Nova::Server
depends_on: [ jump-server,server1_port,sys-vol1 ]
properties:
key_name: { get_param: key_az_1 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol1}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Apache-AZ1"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo yum install httpd -y
sudo systemctl start httpd.service
sudo systemctl enable httpd.service
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql -y
sudo yum install php php-pear -y
sudo yum install php-mysql -y
sudo yum install lua lua-devel pkgconfig gcc asciidoc -y
sudo wget http://dl.fedoraproject.org/pub/epel/7/x86_64/e/epel-release-7-8.noarch.rpm
sudo rpm -iUvh epel-release-7-8.noarch.rpm
sudo yum update -y
sudo yum install lsyncd -y
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server1_port }
###########################################################################################################
################### WebServers – AZ 2 ##############################################################################
server2_port:
type: OS::Neutron::Port
depends_on: [ server_security_group1 ]
properties:
availability_zone: { get_param: az2 }
network_id: { get_resource: private_net_az2 }
security_groups: [{ get_resource: server_security_group1 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az2 }
ip_address: '10.11.200.10'
# Create a system volume for use with the server
sys-vol2:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az2 }
name: "web-az2-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server2:
type: OS::Nova::Server
depends_on: [ jump-server,server2_port,sys-vol2 ]
properties:
key_name: { get_param: key_az_2 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol2}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Apache-AZ2"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo yum install httpd -y
sudo systemctl start httpd.service
sudo systemctl enable httpd.service
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql -y
sudo yum install php php-pear -y
sudo yum install php-mysql -y
sudo yum install lua lua-devel pkgconfig gcc asciidoc -y
sudo wget http://dl.fedoraproject.org/pub/epel/7/x86_64/e/epel-release-7-8.noarch.rpm
sudo rpm -iUvh epel-release-7-8.noarch.rpm
sudo yum update -y
sudo yum install lsyncd -y
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server2_port }
###########################################################################################################
################### DatabaseServers – AZ 1 ##############################################################################
# Create a new port for the server interface, assign an ip address and security group
server3_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.30'
# Create a system volume for use with the server
sys-vol3:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az1 }
name: "db-az1-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server3:
type: OS::Nova::Server
depends_on: [ jump-server,server3_port,sys-vol3 ]
properties:
key_name: { get_param: key_az_1 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol3}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Database-AZ1"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql-server -y
sudo systemctl start mysqld
sudo systemctl enable mysqld
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server3_port }
###########################################################################################################
################### DatabaseServers – AZ 2 ################################################################
# Create a new port for the server interface, assign an ip address and security group
server4_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az2 }
network_id: { get_resource: private_net_az2 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az2 }
ip_address: '10.11.200.30'
# Create a system volume for use with the server
sys-vol4:
type: OS::Cinder::Volume
properties:
availability_zone: { get_param: az2 }
name: "db-az2-boot-vol"
size: 30
volume_type: "M1"
image : { get_param: centos_image }
# Build a server using the system volume defined above
server4:
type: OS::Nova::Server
depends_on: [ jump-server,server4_port,sys-vol4 ]
properties:
key_name: { get_param: key_az_2 }
image: { get_param: centos_image }
flavor: { get_param: flavor_S2 }
admin_user: k5user
block_device_mapping: [{"volume_size": "30", "volume_id": {get_resource: sys-vol4}, "delete_on_termination": True, "device_name": "/dev/vda"}]
name: "Database-AZ2"
user_data_format: RAW
user_data:
str_replace:
template: |
#!/bin/bash
sudo yum update -y
sudo yum install wget -y
sudo wget http://repo.mysql.com/mysql-community-release-el7-5.noarch.rpm
sudo rpm -ivh mysql-community-release-el7-5.noarch.rpm
sudo yum update -y
sudo yum install mysql-server -y
sudo systemctl start mysqld
sudo systemctl enable mysqld
echo message
params:
message: "Installation Complete"
networks:
– port: { get_resource: server4_port }
###########################################################################################################
############################### AZ Interconnect ###########################################################
az1_nc_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az1 }
network_id: { get_resource: private_net_az1 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az1 }
ip_address: '192.168.100.253'
az2_nc_port:
type: OS::Neutron::Port
depends_on: [ server_security_group2 ]
properties:
availability_zone: { get_param: az2 }
network_id: { get_resource: private_net_az2 }
security_groups: [{ get_resource: server_security_group2 }]
fixed_ips:
– subnet_id: { get_resource: private_subnet_az2 }
ip_address: '10.11.200.253'
az1_network_connector:
type: FCX::Neutron::NetworkConnector
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
name: "LAMP-Demo-NC"
az1_nc_endpoint:
type: FCX::Neutron::NetworkConnectorEndpoint
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
endpoint_type: "availability_zone"
name: "AZ1-NC-EP"
network_connector_id: { get_resource: az1_network_connector }
location: { get_param: az1 }
az2_nc_endpoint:
type: FCX::Neutron::NetworkConnectorEndpoint
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
endpoint_type: "availability_zone"
name: "AZ2-NC-EP"
network_connector_id: { get_resource: az1_network_connector }
location: { get_param: az2 }
az1_endpoint_connection:
type: FCX::Neutron::NetworkConnectorEndpointConnection
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
port_id: { get_resource: az1_nc_port }
network_connector_endpoint_id: { get_resource: az1_nc_endpoint }
az2_endpoint_connection:
type: FCX::Neutron::NetworkConnectorEndpointConnection
depends_on: [ az1_nc_port,az2_nc_port ]
properties:
port_id: { get_resource: az2_nc_port }
network_connector_endpoint_id: { get_resource: az2_nc_endpoint }

view raw

FujitsuK5HA_LAMP_Stack.yml

hosted with ❤ by GitHub

Save the above file to you local disk and once you’ve amended the parameters outlined earlier then launch the stack from the K5 gui selecting the file option. After several minutes you should end up with something like this –

deployed

Now all you need to do is login and configure your software – as mentioned earlier yes you can automate ALL of the above but my focus here is to demonstrate the K5 infrastructure components.

Happy Stacking!





3 thoughts on “Highly Available LAMP Stack on the Fujitsu K5 IaaS Platform”

    1. Yes, of course in a production scenario you would “adjust to taste”. The goal of these blogs is to help users understand the fundamentals of how to deliver the infrastructure as code, a.k.a. a heat template. I’d expect these to be tested in a development environment and leaving the security groups open by default will help newbies hit the ground running.

      Thanks for the feedback.
      Graham

      Like

      Reply

Leave a Reply

Fill in your details below or click an icon to log in:

Gravatar
WordPress.com Logo

You are commenting using your WordPress.com account. ( Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. ( Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. ( Log Out /  Change )

Cancel

Connecting to %s
