Today we will look at a simple heat stack to implement the enhanced network connector that the K5 platform implements to link subnets within projects across availability zones.
At Fujitsu our engineering team, currently ranking at number 5 for lines of code committed to the OpenStack project, (well done folks) have enhanced neutron in our K5 platform to give it the same hardware failure domain capability as is present in the nova project today. This means that the neutron service can be split across availability zones which in turn makes it easier to split your availability zones across remote data centres.
See this video for the technical details – 14 minutes in…
As a result of this enhancement we have developed a new K5 neutron component called a network connector that is used to link networks in the same project that are in separate availability zones. They must have different subnet CIDRs.
The following heat stack creates two private networks, one in each availability zone and then joins them together using the new network connector and its endpoint components.
This template should get you up and running quickly should you wish to test it out.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| heat_template_version: 2013-05-23 | |
| # Author: Graham Land | |
| # Date: 21/10/2016 | |
| # Purpose: Create two subnets, one in each availability zone, within the same project and then join these subnets | |
| # using a network connector. The subnets also get configured with the new routes. | |
| # | |
| # Twitter: @allthingsclowd | |
| # Blog: https://allthingscloud.eu | |
| description: Example of how to create and join two networks across AZs within the same project on Fujitsu K5 IaaS | |
| # Input parameters | |
| parameters: | |
| az1: | |
| type: string | |
| label: Availability Zone | |
| description: Region AZ to use | |
| default: "uk-1a" | |
| az1_net_name: | |
| type: string | |
| label: Network name | |
| description: Network name | |
| default: "demo_net_az1" | |
| az1_subnet_name: | |
| type: string | |
| label: Subnet name | |
| description: Subnet name | |
| default: "demo_subnet_az1" | |
| az1_subnet_CIDR: | |
| type: string | |
| label: Subnet CIDR | |
| description: Subnet CIDR | |
| default: "192.168.100.0/24" | |
| az1_subnet_DHCP_Start_Address: | |
| type: string | |
| label: Subnet DHCP Pool start address | |
| description: Subnet DHCP Pool start address | |
| default: "192.168.100.100" | |
| az1_subnet_DHCP_End_Address: | |
| type: string | |
| label: Subnet DHCP Pool end address | |
| description: Subnet DHCP Pool end address | |
| default: "192.168.100.150" | |
| az1_subnet_DNS: | |
| type: string | |
| label: Subnet DNS | |
| description: Subnet DNS | |
| default: | |
| – "62.60.39.9" | |
| – "62.60.39.10" | |
| az1_subnet_Routes: | |
| type: string | |
| label: Subnet Host Routes | |
| description: Subnet Host Routes | |
| default: | |
| – "nexthop": "192.168.100.253" | |
| "destination": "10.10.10.0/24" | |
| az1_subnet_Gateway: | |
| type: string | |
| label: Subnet gateway address | |
| description: Subnet gateway address | |
| default: "192.168.100.254" | |
| az1_EndPoint_ip: | |
| type: string | |
| label: Subnet endpoint address | |
| description: Subnet endpoint address | |
| default: "192.168.100.253" | |
| az2: | |
| type: string | |
| label: Availability Zone | |
| description: Region AZ to use | |
| default: "uk-1b" | |
| az2_net_name: | |
| type: string | |
| label: Network name | |
| description: Network name | |
| default: "demo_net_az2" | |
| az2_subnet_name: | |
| type: string | |
| label: Subnet name | |
| description: Subnet name | |
| default: "demo_subnet_az2" | |
| az2_subnet_CIDR: | |
| type: string | |
| label: Subnet CIDR | |
| description: Subnet CIDR | |
| default: "10.10.10.0/24" | |
| az2_subnet_DHCP_Start_Address: | |
| type: string | |
| label: Subnet DHCP Pool start address | |
| description: Subnet DHCP Pool start address | |
| default: "10.10.10.100" | |
| az2_subnet_DHCP_End_Address: | |
| type: string | |
| label: Subnet DHCP Pool end address | |
| description: Subnet DHCP Pool end address | |
| default: "10.10.10.150" | |
| az2_subnet_DNS: | |
| type: string | |
| label: Subnet DNS | |
| description: Subnet DNS | |
| default: | |
| – "62.60.42.9" | |
| – "62.60.42.10" | |
| az2_subnet_Routes: | |
| type: string | |
| label: Subnet Host Routes | |
| description: Subnet Host Routes | |
| default: | |
| – "nexthop": "10.10.10.253" | |
| "destination": "192.168.100.0/24" | |
| az2_subnet_Gateway: | |
| type: string | |
| label: Subnet gateway address | |
| description: Subnet gateway address | |
| default: "10.10.10.254" | |
| az2_EndPoint_ip: | |
| type: string | |
| label: Subnet endpoint address | |
| description: Subnet endpoint address | |
| default: "10.10.10.253" | |
| # K5 Infrastructure resources to be built | |
| resources: | |
| # Create a private network in availability zone 1 | |
| private_net_az1: | |
| type: OS::Neutron::Net | |
| properties: | |
| availability_zone: { get_param: az1 } | |
| name: { get_param: az1_net_name } | |
| # Create a new subnet on the private network | |
| private_subnet_az1: | |
| type: OS::Neutron::Subnet | |
| depends_on: private_net_az1 | |
| properties: | |
| availability_zone: { get_param: az1 } | |
| name: { get_param: az1_subnet_name } | |
| network_id: { get_resource: private_net_az1 } | |
| cidr: { get_param: az1_subnet_CIDR } | |
| gateway_ip: { get_param: az1_subnet_Gateway } | |
| allocation_pools: | |
| – start: { get_param: az1_subnet_DHCP_Start_Address } | |
| end: { get_param: az1_subnet_DHCP_End_Address } | |
| dns_nameservers: { get_param: az1_subnet_DNS } | |
| host_routes: { get_param: az1_subnet_Routes } | |
| # Create a private network in availability zone 1 | |
| private_net_az2: | |
| type: OS::Neutron::Net | |
| properties: | |
| availability_zone: { get_param: az2 } | |
| name: { get_param: az2_net_name } | |
| # Create a new subnet on the private network | |
| private_subnet_az2: | |
| type: OS::Neutron::Subnet | |
| depends_on: private_net_az2 | |
| properties: | |
| availability_zone: { get_param: az2 } | |
| name: { get_param: az2_subnet_name } | |
| network_id: { get_resource: private_net_az2 } | |
| cidr: { get_param: az2_subnet_CIDR } | |
| gateway_ip: { get_param: az2_subnet_Gateway } | |
| allocation_pools: | |
| – start: { get_param: az2_subnet_DHCP_Start_Address } | |
| end: { get_param: az2_subnet_DHCP_End_Address } | |
| dns_nameservers: { get_param: az2_subnet_DNS } | |
| host_routes: { get_param: az2_subnet_Routes } | |
| # Create a security group | |
| server_security_group1: | |
| type: OS::Neutron::SecurityGroup | |
| properties: | |
| description: Add security group rules for server | |
| name: NetworkConnector | |
| rules: | |
| – remote_ip_prefix: 0.0.0.0/0 | |
| protocol: tcp | |
| port_range_min: 1 | |
| port_range_max: 65535 | |
| – remote_ip_prefix: 0.0.0.0/0 | |
| protocol: udp | |
| port_range_min: 1 | |
| port_range_max: 65535 | |
| – remote_ip_prefix: 0.0.0.0/0 | |
| protocol: icmp | |
| ############################### AZ Interconnect ########################################################### | |
| az1_nc_port: | |
| type: OS::Neutron::Port | |
| depends_on: [ server_security_group1 ] | |
| properties: | |
| availability_zone: { get_param: az1 } | |
| network_id: { get_resource: private_net_az1 } | |
| security_groups: [{ get_resource: server_security_group1 }] | |
| fixed_ips: | |
| – subnet_id: { get_resource: private_subnet_az1 } | |
| ip_address: { get_param: az1_EndPoint_ip } | |
| az2_nc_port: | |
| type: OS::Neutron::Port | |
| depends_on: [ server_security_group1 ] | |
| properties: | |
| availability_zone: { get_param: az2 } | |
| network_id: { get_resource: private_net_az2 } | |
| security_groups: [{ get_resource: server_security_group1 }] | |
| fixed_ips: | |
| – subnet_id: { get_resource: private_subnet_az2 } | |
| ip_address: { get_param: az2_EndPoint_ip } | |
| az1_network_connector: | |
| type: FCX::Neutron::NetworkConnector | |
| depends_on: [ az1_nc_port,az2_nc_port ] | |
| properties: | |
| name: "Demo_AZ_Network_Connector" | |
| az1_nc_endpoint: | |
| type: FCX::Neutron::NetworkConnectorEndpoint | |
| depends_on: [ az1_nc_port,az2_nc_port ] | |
| properties: | |
| endpoint_type: "availability_zone" | |
| name: "AZ1-NC-EP" | |
| network_connector_id: { get_resource: az1_network_connector } | |
| location: { get_param: az1 } | |
| az2_nc_endpoint: | |
| type: FCX::Neutron::NetworkConnectorEndpoint | |
| depends_on: [ az1_nc_port,az2_nc_port ] | |
| properties: | |
| endpoint_type: "availability_zone" | |
| name: "AZ2-NC-EP" | |
| network_connector_id: { get_resource: az1_network_connector } | |
| location: { get_param: az2 } | |
| az1_endpoint_connection: | |
| type: FCX::Neutron::NetworkConnectorEndpointConnection | |
| depends_on: [ az1_nc_port,az2_nc_port ] | |
| properties: | |
| port_id: { get_resource: az1_nc_port } | |
| network_connector_endpoint_id: { get_resource: az1_nc_endpoint } | |
| az2_endpoint_connection: | |
| type: FCX::Neutron::NetworkConnectorEndpointConnection | |
| depends_on: [ az1_nc_port,az2_nc_port ] | |
| properties: | |
| port_id: { get_resource: az2_nc_port } | |
| network_connector_endpoint_id: { get_resource: az2_nc_endpoint } | |
| Contact GitHub API Training Shop Blog About | |
| © 2016 GitHub, Inc. Terms Priv |

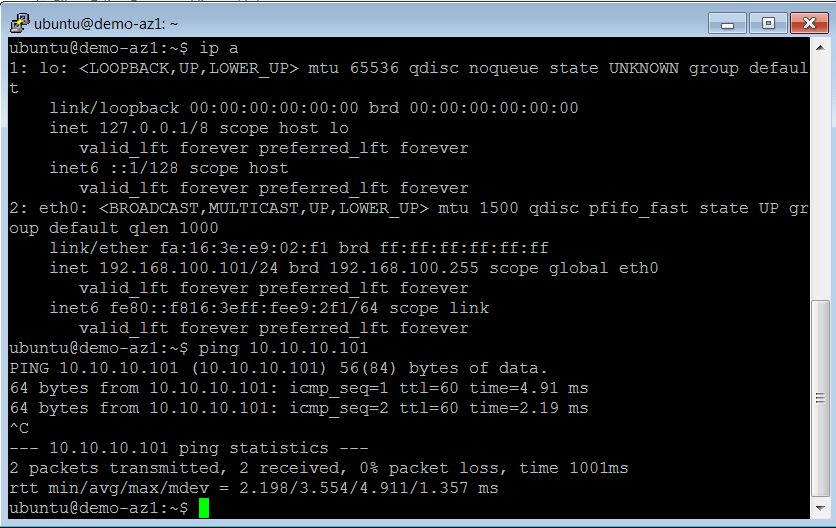

Now all you need to do is spin up an instance on each subnet and you will see that you have layer 3 connectivity between the instances …
Happy Stacking!
